850nm 1310nm 1550nm MM To SM CONVERTER Multimode To Single Mode Fiber Converter

MM to SM CONVERTER

• Overview

These series devices include several types:

1)Wavelength Switch Device:It can provide date transmission between two wavelength,such as 1310nm↔1310nm,1310nm↔1550nm,1310nm↔850nm,850nm↔1550nm

This kind of device also can be used as positive power enlarge device

2) Mode Switch Device: It can provide date transmission between multi mode (850nm,1310nm)and single mode (1310nm,1550nm),This kind of device also can be used as positive power enlarge device.

3) Fiber Switch Device: It can provide the date transmission between single –fiber and dual –fiber.

4) Switch deferent wavelength and two types of mode.

Our company can provide this kind of device with deferent date rate (155M,622M,1.25G),The longest distance can be 120km.

2. Features

Communication Standard Independent

Band Width: 100M bps ~ 1250M bps

Receptacle: SC/LC

Operating temperature: -20℃~70℃

Operating humidity: 5%~90%

Transmission distance: Multi mode: 2Km/1310nm 550m/850nm

Single mode: 2~40Km

1550nm MM To SM CONVERTER

1310nm MM To SM CONVERTER

850nm mm to sm media converter

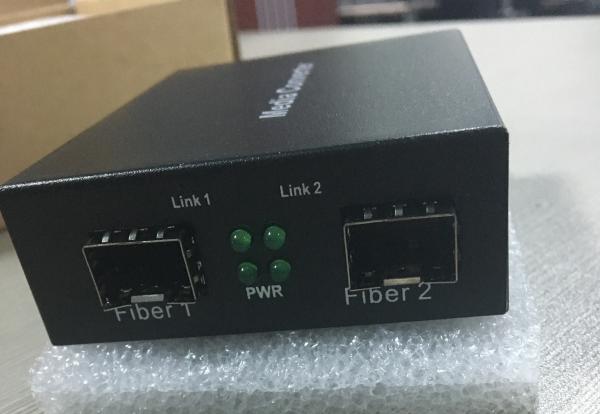

850nm 1310nm 1550nm MM To SM CONVERTER Multimode To Single Mode Fiber Converter Images
