MPO Patch Cord Fanout Fiber Optic Connectivity 850nm 1310nm MTP Fanout Cable

1. Products Name

MPO / MTP Fanout Cable

2. Products Key Features

MPO / MTP assembled with jacketed ribbon cable, transition through a square fanout kit with 0.9mm legs to single-fiber connectors

Available in SM (9/125), MM (50 or 62.5/125), 10Gigabit fiber types

Available in 8/12/24 -fiber

Corning fiber available for selection

3. Specifications

MTP / MPO Termination:

Type	Single mode (APC )		Single mode (PC)		Multi mode (PC)
Fiber count	4,8,12, 24 etc.		4,8,12, 24 etc.		4,8,12, 24 etc.
Fiber type	G652D,G657A1 etc.		G652D,G657A1 etc.		OM1,OM2,OM3 etc.
Maximum Insertion Loss	Elite Low Loss	Standard	Elite Low Loss	Standard	Elite Low Loss	Standard
	≤0.35 dB	≤0.70 dB	≤0.35 dB	≤0.70 dB	≤0.35dB	≤0.50dB
Return Loss	≥55 dB		≥45 dB		≥20 dB
Durability	≥200 times		≥200 times		≥200 times
Operating Temperature	-40℃ ~ +80℃		-40℃~ +80℃		-40℃ ~ +80℃
Test Wavelength	1310nm		1310nm		850nm

General Connector Termination:

Type	Single mode		Multi mode
Fiber type	G652D,G657A1 etc.		OM1,OM2,OM3 etc.
Maximum Insertion Loss	UPC	APC	UPC
	≤0.30 dB	≤0.30 dB	≤0.30dB
Typical Insertion Loss	0.2 dB	0.2 dB	0.2 dB
Return Loss	≥50 dB	≥55 dB	≥25 dB
Durability	≥500 times		≥500 times
Operating Temperature	-40℃ ~ +80℃		-40℃ ~ +80℃
Test Wavelength	1310nm		850nm

4. Application Scenarios

For installation in closet area or horizontal patch extension from consolidation point to the workstation outlets

High Density Fiber Management

DAC LAN/WAN Premises

Product Tags:

MPO Patch Cord Fanout



1310nm MTP Fanout Cable



850nm MTP Fanout Cable

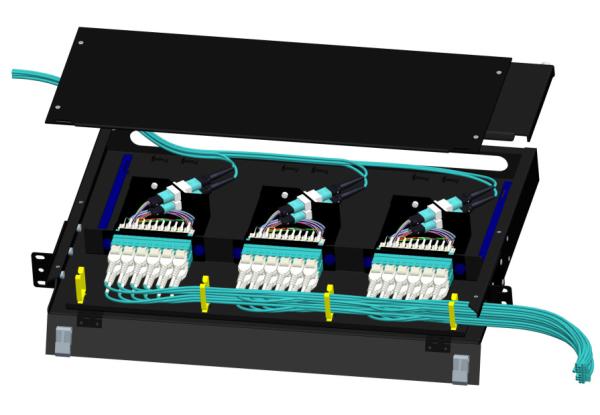

MPO Patch Cord Fanout Fiber Optic Connectivity 850nm 1310nm MTP Fanout Cable Images
