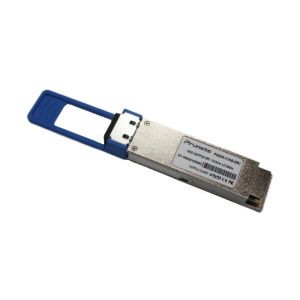

100Gbps QSFP28 DR1 Transceiver Single Mode 500m Reach 100GBase DR1

Brand Name : Pronets or OEM

Model Number : PQS28-31HG-DR1

Certification : UL FCC RoHS FDA

Place of Origin : China

MOQ : 1pcs

Price : US $215/pcs

Payment Terms : T/T

Supply Ability : 10000pcs/day

Packaging Details : plastic containers

type : fiber optical active passive product

keyword : optical transceiver/Network switch/Media converter

Contact Now

PQS28-31HG-DR1 100Gbps QSFP28 DR1 Transceiver, Single Mode, 500m Reach
Features
Compliant to 802.3cu
100GE DR1 Specification compliant
1 channel full-duplex transceiver modules
Full-duplex transceiver module
4x25.78125Gbit/s NRZ electrical interface(CAUI-4)
106.25Gb/s PAM4 based on Silicon Photonics
4W maximum power dissipation
Hot-pluggable QSFP28 form factor
Maximum link length of 500m on G.652 SMF with KP-FEC
Duplex LC receptacles
Built-in digital diagnostic functions
Single 3.3V power supply
RoHS compliant (lead free)
Operating case temperature range: 0 to 70°C
Applications
IEEE 802.3cu 100GE DR1
Description
The Pronets 100G DR1 500m QSFP28 optical transceiver, 100G QSFP28 DR1 is designed for
using in 100-Pronets Ethernet links up to 500m over Single-Mode Fiber (SMF). It is compliant with the
QSFP28 MSA ,802.3cu 100GBASE DR1 and CAUI-4(no FEC)1 . Digital diagnostics functions are
available via the I2C interface, as specified by the QSFP28 MSA. It integrates 4 data lanes in each
direction with 4×25.78125Gb/s bandwidth. The electrical interface uses a 38-contact edge type
connector. The optical interface uses a Duplex LC connector. This module incorporates Pronets
proven circuit and Silicon Photonics technology to provide reliable long life, high performance, and
consistent service.

Product Tags:

100Gbps QSFP28 DR1



QSFP28 DR1 Transceiver



500m Reach 100GBase DR1


Wholesale 100Gbps QSFP28 DR1 Transceiver Single Mode 500m Reach 100GBase DR1 from china suppliers

100Gbps QSFP28 DR1 Transceiver Single Mode 500m Reach 100GBase DR1 Images
