10Gbps 10km Reach Optical Transponder Module PX2-31192-LRC

10Gbps PX2-31192-LRC 10km Reach compatible with Cisco Juniper Huawei HP Aruba H3C

10GBASE -LR , 10km Reach

Features

Compatible with X2 MSA Rev2.0b

Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps

Transmission Distance up to 10Km(SMF)

SC Receptacle 1310 DFB Laser

SC Duplex Optical Connector

Hot Pluggable 70-PIN Connector with XAUI Electrical Interface

Management and control via MDIO 2-wire interface

Power Supply :+3.3V, APS(+1.2V)

Diagnostic Optics Monitoring

Temperature Range: -5 ~ 70 °C

ROHS Compatible

Applications

10GE Ethernet switches and routers

10GE Core-routers

10GE Storage

Other 10Gbps Ethernet Transmission System

Product Description

The PX2-31192-LRC is a highly integrated,Serial optical transponder module for high-speed,

10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with an uncooled directly modulated 1310nm DFB Laser. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.

10Gbps Optical Transponder Module

10km Transponder Module

PX2-31192-LRC

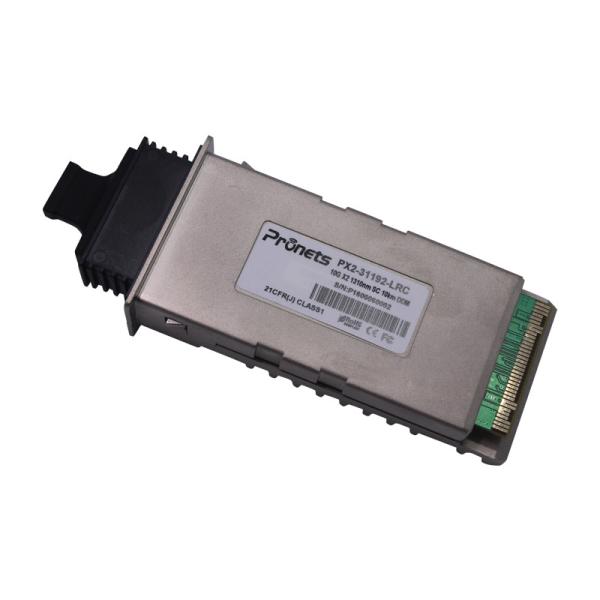

10Gbps 10km Reach Optical Transponder Module PX2-31192-LRC Images
